HV BUSWAY SYSTEM

DAVIS introduces its new version of Maintenance Free HV Busway system to meet the latest requirements of modern commercial buildings and industrial complexes. DAVIS HV Busway can be easily installed in most site conditions to distribute electrical power efficiently. DAVIS HV Busway is available from 630A to 5000A rated at 12kV in a polyphase system.

TECHNICAL SPECIFICATIONS

SPECIFICATIONS DETAILS
Compliance of design standards
IEC 62271 & other equivalent standards
IEC 60529:2001 – Degree of Ingress Protection
System voltages 12kV at 50Hz or 60Hz frequency
Busbar Conductor
Copper 99.98% (Composition) >98% IACS (Conductivity)
Current rating
630A – 5000A for copper conductor
Busway enclosures Galvanised Steel
Housing finishing Epoxy polyester powder coated
Ingress of protection Indoor Installation IP42/43/44/55 & Outdoor Installation IP65/66

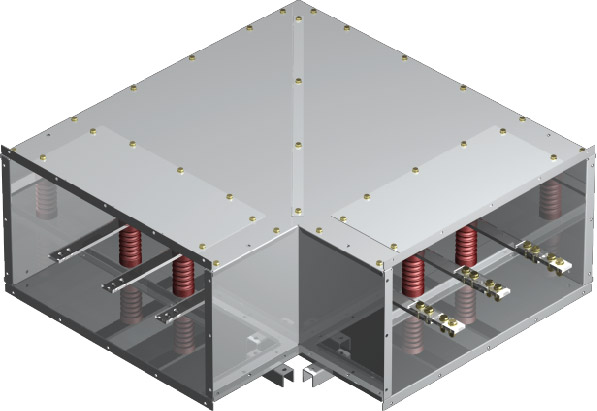

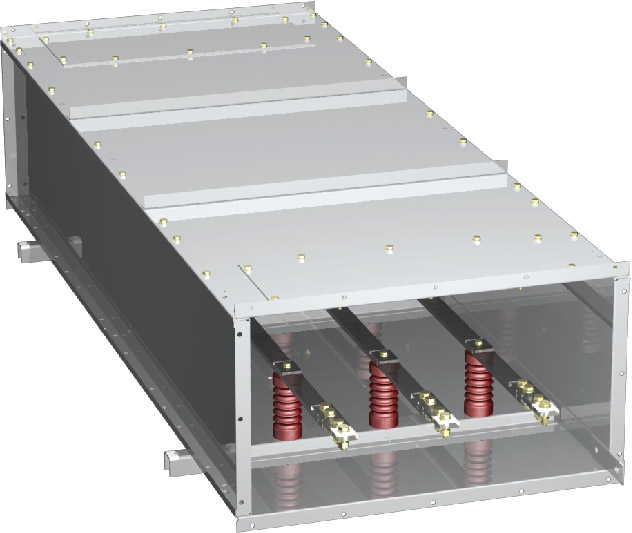

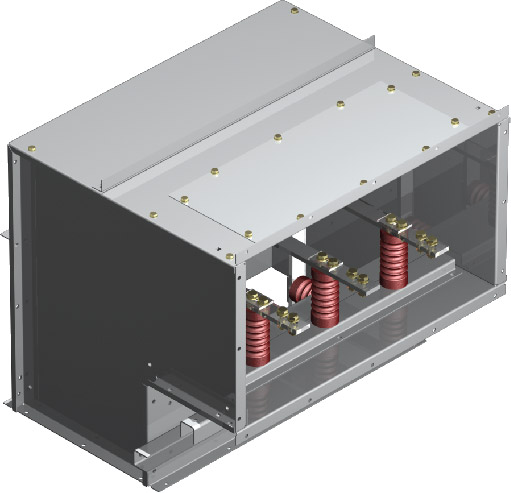

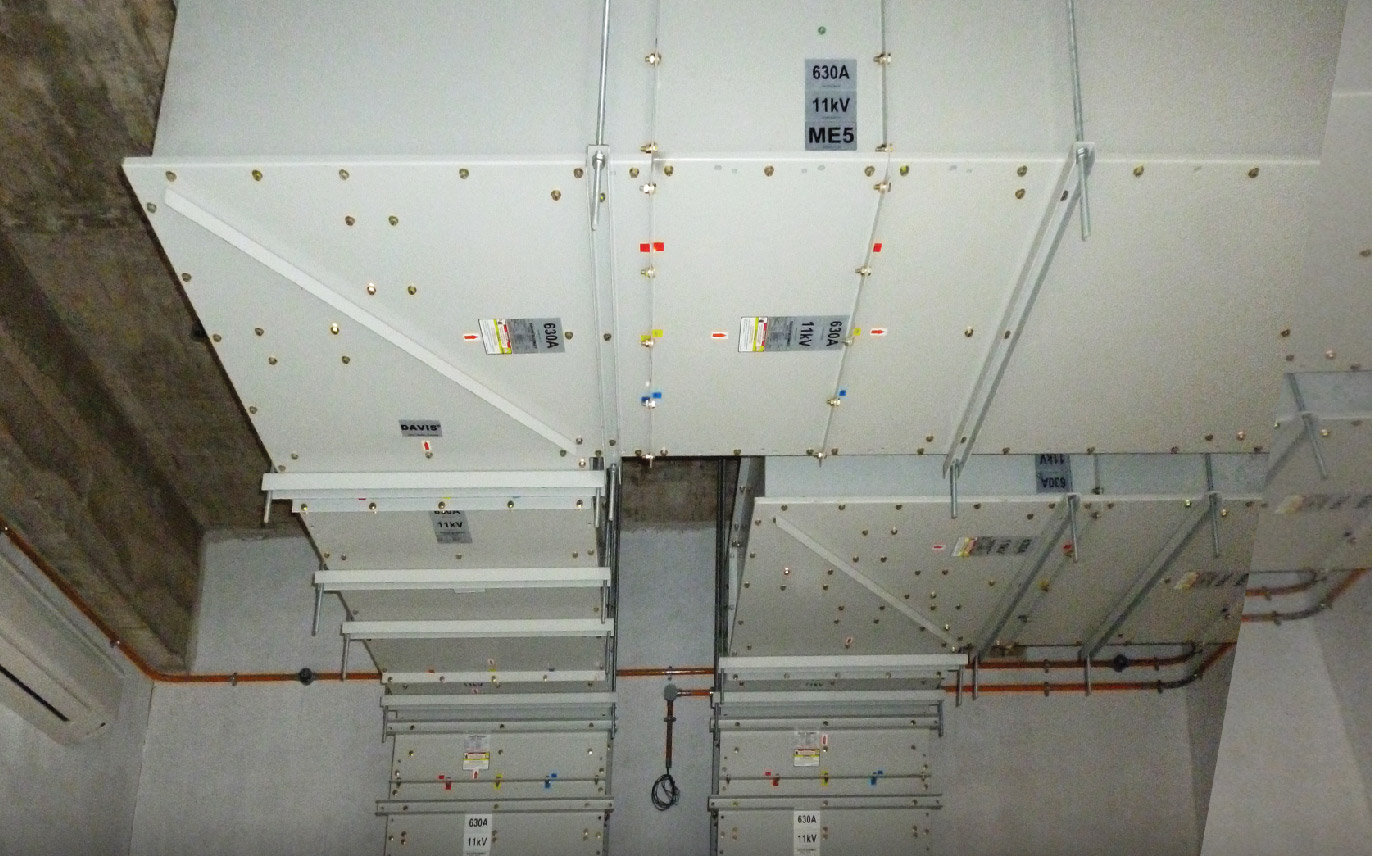

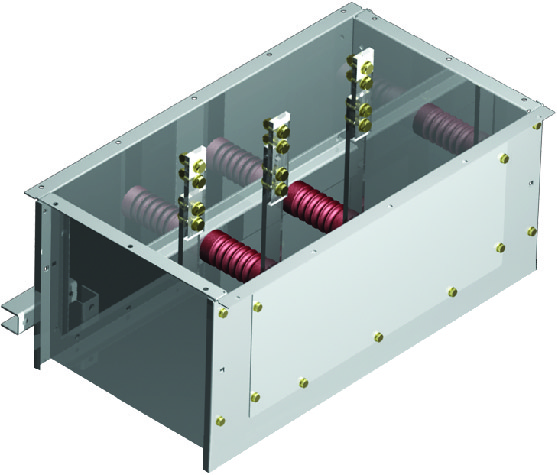

GALLERY
